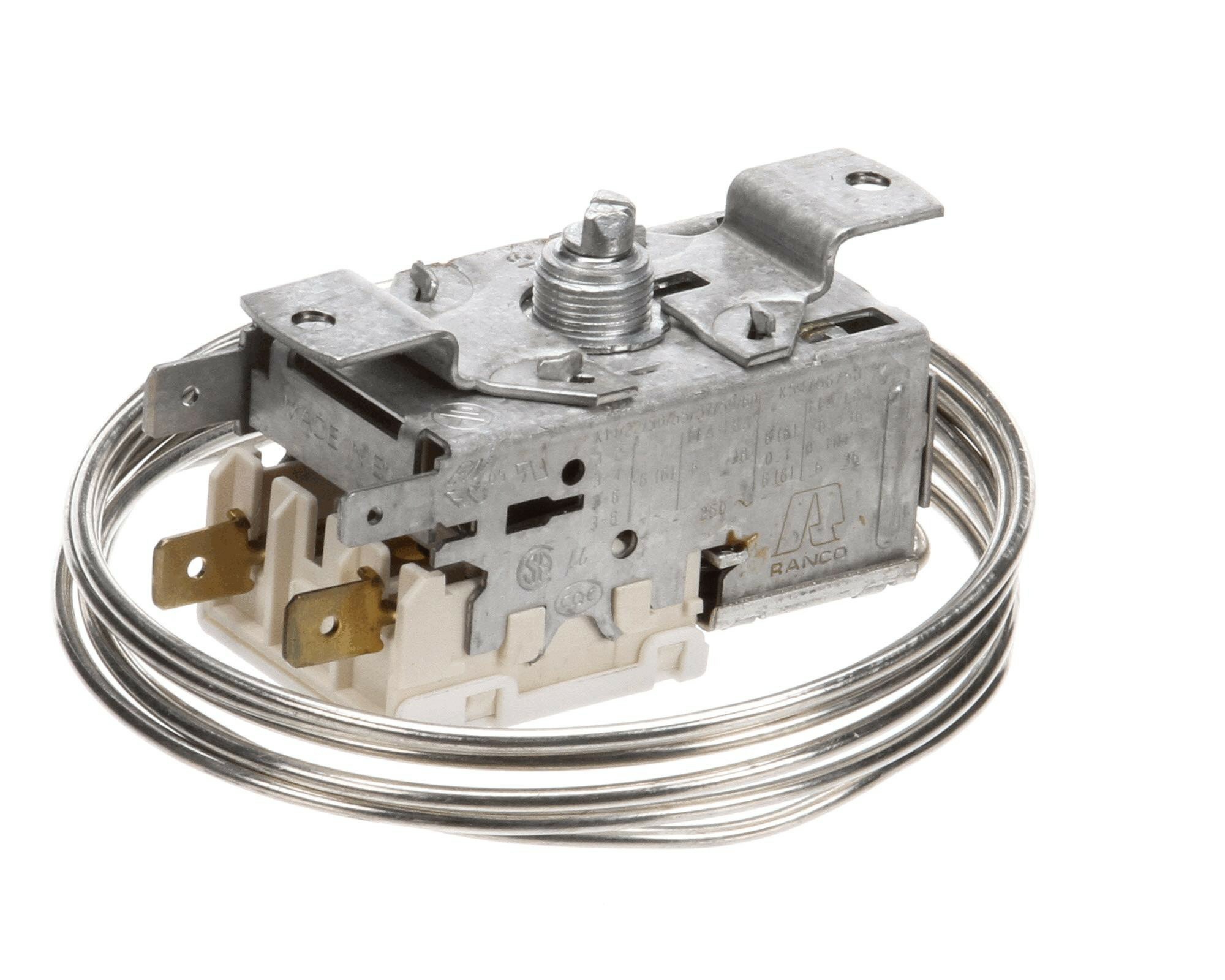

R23005 Bin Thermostat is premium aftermarket replacement part exclusively for Brema commercial ice makers. Working as an ice-full detection sensor, it will automatically cut off power once the ice bin reaches full capacity to avoid ice overflow and guarantee stable machine running. This thermostat performs ice bin temperature monitoring and ice-full shutdown protection, widely compatible with Brema CB series ice cube machines.
| Item | Specification |
|---|---|
| Part Number | R23005 (23005) |
| Product Type | Ice Machine Bin Thermostat / Ice Full Control Sensor |
| Function | Ice bin temperature control & ice-full shut-off protection |
| Rated Electrical | 250V~ 6A (120V / 240V compatible) |
| Contact Type | SPST Normally Closed (NC) |
| Cut-out Temperature (Ice Full) | +4°C ~ +6°C |
| Cut-in Temperature | ~ -4°C |
| Capillary Length | 1500mm (customizable) |
| Bulb Diameter | Standard size for Brema ice machine |
| Service Life | ≥100,000 cycles |
| Protection Class | IP54 |
| Certifications | CE, RoHS compliant |
| Compatible Models | Brema CB134, CB246, CB310, CB425, CB640, CB955, etc. |
All Haiev ice maker parts are manufactured under strict quality control to ensure superior durability, stable performance and wide compatibility.
Designed for both household and commercial use, Haiev parts provide a cost-effective solution for ice machine repair, maintenance,replacement and upgrade.
Trust Haiev for consistent ice production and less downtime.
Haiev – Professional Solutions for Ice Machine Maintenance and Upgrade
